JFX Technologies jual Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk switch lainnya baik dari Westermo ataupun merk lain, klik disini untuk pilihan produk switch lainnya. Berikut penjelasan singkat mengenai Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch, atau untuk informasi datasheet bisa download disini

Compact 4-port Ethernet Fibre Switch

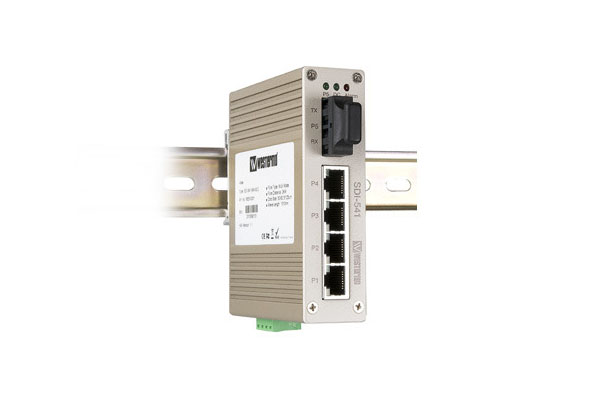

Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch is an industrial fast Ethernet switch with four 10/100Base-TX ports and one 100Base-FX port. Two versions are available with the SC2 variant capable of data transmission over 2 km with multi-mode fibre or 30 km by single-mode fibre using the SC30 model. Its compact IP31 rated aluminum case allows the unit to be fitted into a very small space on an industry standard DIN rail.

Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch can operate with variable power sources being able to accept AC 18 ~ 27 V or DC 18 ~ 32 V on a removable connector block.

A single relay output is provided to allow port link down events to be indicated, This function is configured by a simple DIP switch. The switch requires no user setup and will immediately start to operate on power up. The 3.22 Gbit/s switch core ensures that no data delay occurs within the switch.

Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch Features :

  •  4-ports 10/100 TX and 1 multi-mode or single-mode Fibre Compact Fast Ethernet Switch
  • 3.2Gbit/s Switch Fabric with excellent data exchange performance
  • Variable power input, AC 18 – 27 V / DC 18 – 32 V
  • Fault relay alarm
  • Aluminum case with IP-31 grade protection
  • –10 ~ 60ºC operating temperature

Selain jual Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch , JFX Technologies juga menerima jasa instalasi dan maintenance switch dengan harga bersaing. Kami tidak sekedar jual Westermo SDI-541-MM-SC2 Compact 4-port Ethernet Fibre Switch, tetapi juga memberikan jaminan atas barang yang anda beli.
