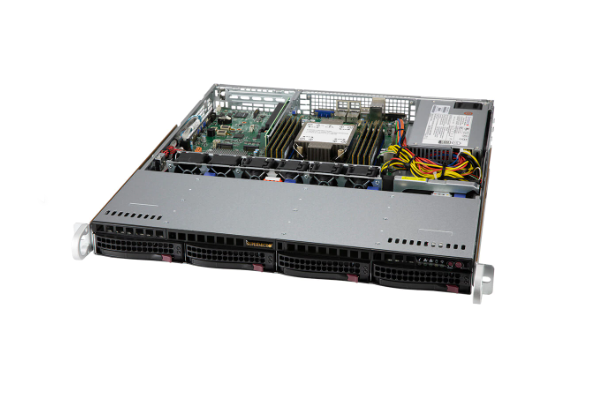

JFX Technologies jual SuperMicro UP SuperServer SYS-510P-M dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga SuperMicro UP SuperServer SYS-510P-M dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Server lainnya baik dari SuperMicro ataupun merk lain, klik disini untuk pilihan produk Server lainnya. Berikut penjelasan singkat mengenai SuperMicro UP SuperServer SYS-510P-M atau untuk informasi datasheet bisa download disini

Mission Critical Server Solutions

SuperMicro UP SuperServer SYS-510P-M Key Applications :

  • Small Business
  • Web/Hosting Application
  • Email/Firewall/Print Server

SuperMicro UP SuperServer SYS-510P-M Key Features :

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 1 PCI-E 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller i350 2x 1GbE RJ45
  5. 4x hot-swap 3.5” Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
  6. Single Platinum 500W Power Supply

Processor

  • CPU
    • Single Socket P+ (LGA 4189)
    • Support Intel® 3rd Gen Xeon® Scalable Processors
    • Support CPU TDP 220W
  • Cores
    • Up to 36C/72T; Up to 54MB Cache

System Memory

  • Memory
    • Memory Capacity: 8 DIMM slots
    • Up to 2TB: 8x 256 GB DRAM
    • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
    • Intel® Optane™ persistent memory 200 series
  • Memory Voltage 1.25 V
  • Error Detection Yes

On-Board Devices

  • SATA SATA3 (6Gbps); RAID 0/1/5/10 support (Port 0-5)
  • NVMe NVMe; RAID 0/1/5/10 support
  • Chipset Intel® C621A
  • Network Connectivity 2x 1GbE BaseT with Intel® i350
  • IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

  • SATA 10 SATA (6Gbps) port(s)
  • LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 2 RJ45 1GbE LAN ports
  • USB
    • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
    • 6 USB 2.0 port(s) (4 headers; 2 rear)
  • Video 1 VGA port(s)
  • Serial Port 2 COM Port(s) (1 header; 1 rear)
  • DOM 2 SuperDOM (Disk on Module) port with built-in power

Selain jual SuperMicro UP SuperServer SYS-510P-M, JFX Technologies juga menerima jasa instalasi dan maintenance Server dengan harga bersaing. Kami tidak sekedar jual SuperMicro UP SuperServer SYS-510P-M, tetapi juga memberikan jaminan atas barang yang anda beli.
