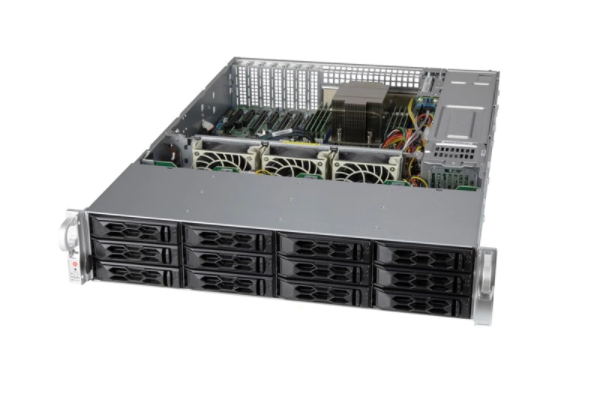

JFX Technologies jual SuperMicro A+ Server 2014S-TR dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga SuperMicro A+ Server 2014S-TR dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Server lainnya baik dari SuperMicro ataupun merk lain, klik disini untuk pilihan produk Server lainnya. Berikut penjelasan singkat mengenai SuperMicro A+ Server 2014S-TR atau untuk informasi datasheet bisa download disini

Mission Critical Server Solutions

SuperMicro A+ Server 2014S-TR Key Applications :

  • Backup storage
  • Web or Database Servers
  • Compact Network Appliance

SuperMicro A+ Server 2014S-TR Key Features :

  1. Single AMD EPYC™ 7002/7003 Series Processor
  2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  3. 5 PCI-E 4.0 x16 LP slots, 2 PCI-E 4.0 x8 LP slots
  4. 2x 1GbE LAN ports, 1 dedicated IPMI LAN port
  5. 12 Hot-swap 3.5″ SATA3 drive bays,
    2 rear Hot-swap 2.5″ SATA3 Drive bays via optional kit
    M.2 Interface: 2 PCI-E 4.0 x4
    M.2 Form Factor: 2242, 2260, 2280, 22110
    M.2 Key: M-Key
  6. 6 USB 3.0 ports (4 rear, 2 via header), 1 VGA, 1 COM, ASPEED AST2500 BMC graphics
  7. 920W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)

Processor

  • CPU
    • Single AMD EPYC™ 7002/7003 Series Processor
    • Socket SP3
    • Supports CPU TDP up to 280W
  • Cores
    • Up to 64 Cores

System Memory

  • Memory
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices

  • Chipset System on Chip
  • SATA SATA3 (6Gbps)
  • Network Controllers Broadcom BCM5720 Gigabit Ethernet Controller
  • IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Video ASPEED AST2500 BMC

Input / Output

  • SATA 8 SATA3 (6 Gbps) ports
  • LAN
    • 2x 1GbE LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
  • USB 6 USB 3.0 ports (4 rear, 2 via header)
  • COM 1 COM Port (rear)
  • Video 1 VGA port

Selain jual SuperMicro A+ Server 2014S-TR, JFX Technologies juga menerima jasa instalasi dan maintenance Server dengan harga bersaing. Kami tidak sekedar jual SuperMicro A+ Server 2014S-TR, tetapi juga memberikan jaminan atas barang yang anda beli.
