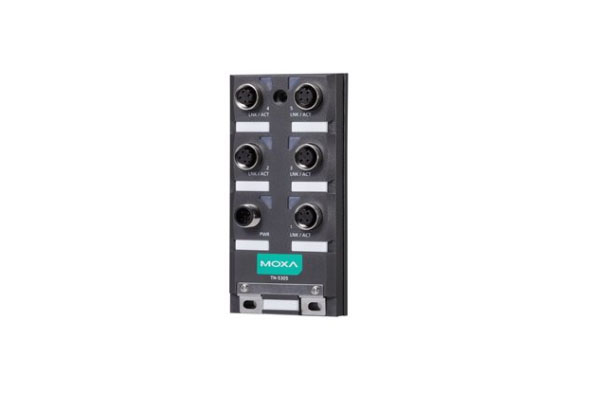

JFX Technologies jual Moxa TN-5305 Industrial Switch dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Moxa TN-5305 Industrial Switch dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk switch lainnya baik dari Moxa ataupun merk lain, klik disini untuk pilihan produk switch lainnya. Berikut penjelasan singkat mengenai Moxa TN-5305 Industrial Switch , atau untuk informasi datasheet bisa download disini
EN 50155 5-port IP67 unmanaged Ethernet switches
Moxa TN-5305 Industrial Switch Features and Benefits
- 110/100BaseT(X), 4-pin M12 (D-coded), F/H duplex mode, and auto MDI/MDIX connection
- IP67-rated housing protection
- Power input: 12 to 45 VDC, 18 to 30 VAC
- Complies with all EN 50155 mandatory test items1
- -40 to 75°C operating temperature range (-T models)
The Moxa TN-5305 Industrial Switch are IP67-rated for tough industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry.
The space-saving Moxa TN-5305 Industrial Switch can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. Moxa TN-5305 Industrial Switch comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
Ethernet Interface
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) : 5
- Standards
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X)
- IEEE 802.3x for flow control
Physical Characteristics
- Housing : Plastic top cover, metal bottom plate
- IP Rating : IP67
- Dimensions : 60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
- Weight : Packaged: 270 g (0.56 lb)
- Installation : DIN-rail mounting, Wall mounting (with optional kit)
Selain jual Moxa TN-5305 Industrial Switch , JFX Technologies juga menerima jasa instalasi dan maintenance switch dengan harga bersaing. Kami tidak sekedar jual Moxa TN-5305 Industrial Switch , tetapi juga memberikan jaminan atas barang yang anda beli.
