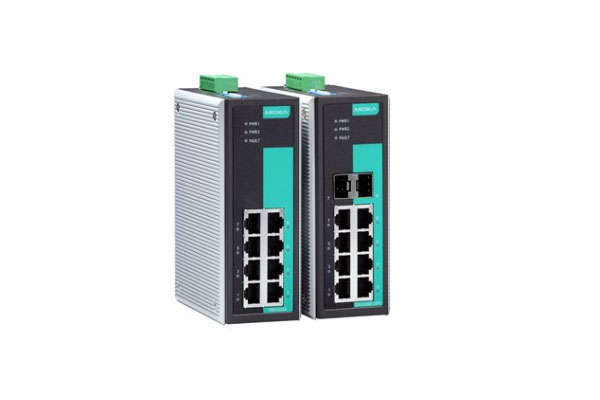

JFX Technologies jual Moxa EDS-G308 Industrial Switch dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Moxa EDS-G308 Industrial Switch dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk switch lainnya baik dari Moxa ataupun merk lain, klik disini untuk pilihan produk switch lainnya. Berikut penjelasan singkat mengenai Moxa EDS-G308 Industrial Switch , atau untuk informasi datasheet bisa download disini
8G-port full Gigabit unmanaged Ethernet switches
Moxa EDS-G308 Industrial Switch Features and Benefits
- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 19.6 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
The Moxa EDS-G308 Industrial Switch are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The Moxa EDS-G308 Industrial Switch provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.
A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Input/Output Interface
- Alarm Contact Channels : 1 relay output with current carrying capacity of 1 A @ 24 VDC
DIP Switch Configuration
- Ethernet Interface : Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm
Switch Properties
- MAC Table Size : 8 K
- Packet Buffer Size : 4 Mbits
- Processing Type : Store and Forward
- Jumbo Frame Size : 9.6 KB
Physical Characteristics
- Housing : Metal
- IP Rating : IP30
- Dimensions : 53 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
- Weight : 880 g (1.94 lb)
- Installation : DIN-rail mounting, Wall mounting (with optional kit)
Selain jual Moxa EDS-G308 Industrial Switch , JFX Technologies juga menerima jasa instalasi dan maintenance switch dengan harga bersaing. Kami tidak sekedar jual Moxa EDS-G308 Industrial Switch , tetapi juga memberikan jaminan atas barang yang anda beli.
