JFX Technologies jual Moxa EDS-G205 dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Moxa EDS-G205 dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk LAN Switch lainnya baik dari Moxa ataupun merk lain, klik disini untuk pilihan produk LAN Switch lainnya. Berikut penjelasan singkat mengenai Moxa EDS-G205 atau untuk informasi datasheet bisa download disini

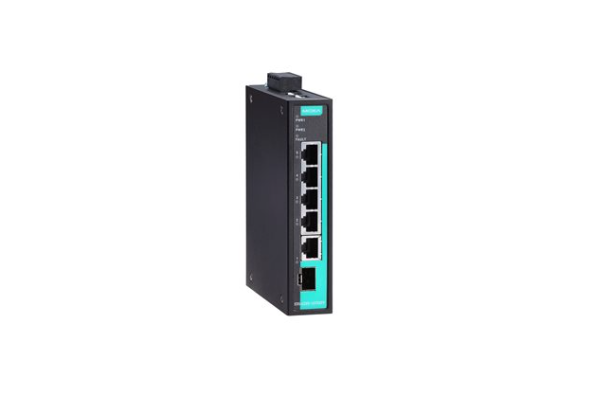

5G-port full Gigabit unmanaged Ethernet switches
Moxa EDS-G205 Features and Benefits :
- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 10 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
The Moxa EDS-G205 switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.
A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Input/output Interface
- Alarm Contact Channels : 1 relay output with current carrying capacity of 1 A @ 24 VDC
Switch Properties
- MAC Table Size : 8 K
- Packet Buffer Size : 1 Mbits
- Jumbo Frame Size : 10 KB
- Processing Type : Store and Forward
DIP Switch Configuration
- Ethernet Interface : Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm
Selain jual Moxa EDS-G205, JFX Technologies juga menerima jasa instalasi dan maintenance LAN Switch dengan harga bersaing. Kami tidak sekedar jual Moxa EDS-G205, tetapi juga memberikan jaminan atas barang yang anda beli.
