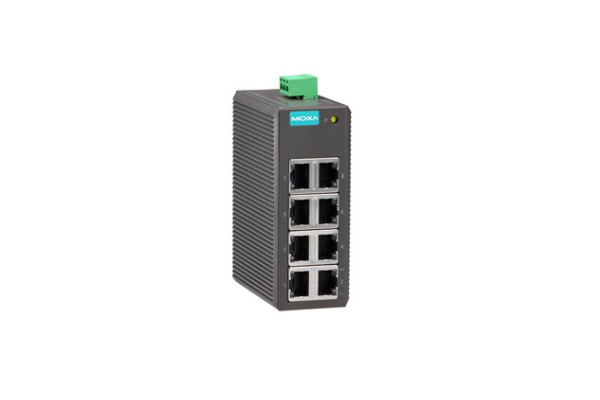

JFX Technologies jual Moxa EDS-208 dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Moxa EDS-208 dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk LAN Switch lainnya baik dari Moxa ataupun merk lain, klik disini untuk pilihan produk LAN Switch lainnya. Berikut penjelasan singkat mengenai Moxa EDS-208 atau untuk informasi datasheet bisa download disini

8-port entry-level unmanaged Ethernet switches

Moxa EDS-208 Features and Benefits :

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-rail mounting ability
  • -10 to 60°C operating temperature range

The Moxa EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.

Ethernet Interface

  • Standards
    • IEEE 802.3 for 10BaseT
    • IEEE 802.3u for 100BaseT(X) and 100BaseFX
    • IEEE 802.3x for flow control
  • 10/100BaseT(X) Ports (RJ45 connector)
    • EDS-208: 8
    • EDS-208-M-SC: 1
    • EDS-208-M-ST: 1
    • Auto negotiation speed
    • Full/Half duplex mode
    • Auto MDI/MDI-X connection
  • 100BaseFX Ports (multi-mode SC connector)
    • EDS-208-M-SC: 1
  • 100BaseFX Ports (multi-mode ST connector)
    • EDS-208-M-ST: 1

Switch Properties

  • Processing Type Store and Forward
  • MAC Table Size 2 K
  • Packet Buffer Size 768 kbits

Power Parameters

  • Input Voltage 24 VDC
  • Input Current
    • EDS-208: 0.07 A @ 24 VDC
    • EDS-208-M Models: 0.1 A @ 24 VDC
  • Operating Voltage 12 to 48 VDC
  • Connection 1 removable 3-contact terminal block(s)
  • Overload Current Protection 2.5 A @ 24 VDC
  • Reverse Polarity Protection Supported

Physical Characteristics

  • Housing Plastic
  • IP Rating IP30
  • Dimensions 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
  • Weight 170 g (0.38 lb)
  • Installation DIN-rail mounting

Environmental Limits

  • Operating Temperature -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity 5 to 95% (non-condensing)

Selain jual Moxa EDS-208, JFX Technologies juga menerima jasa instalasi dan maintenance LAN Switch dengan harga bersaing. Kami tidak sekedar jual Moxa EDS-208, tetapi juga memberikan jaminan atas barang yang anda beli.
