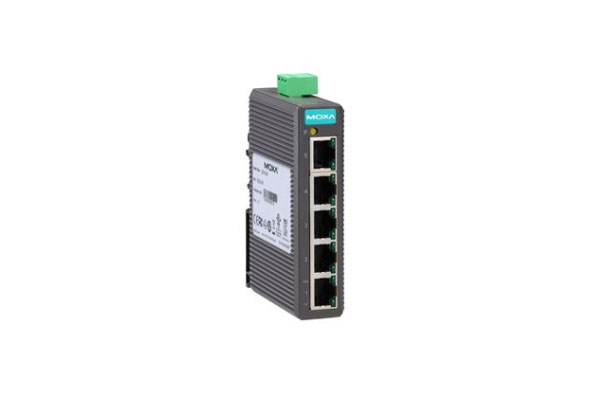

JFX Technologies jual Moxa EDS-205 Industrial Switch dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Moxa EDS-205 Industrial Switch dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk switch lainnya baik dari Moxa ataupun merk lain, klik disini untuk pilihan produk switch lainnya. Berikut penjelasan singkat mengenai Moxa EDS-205 Industrial Switch , atau untuk informasi datasheet bisa download disini
5-port entry-level unmanaged Ethernet switches
Moxa EDS-205 Industrial Switch Features and Benefits :
- 10/100BaseT(X) (RJ45 connector)
- IEEE802.3/802.3u/802.3x support
- Broadcast storm protection
- DIN-rail mounting ability
- -10 to 60°C operating temperature range
The Moxa EDS-205 Industrial Switch supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The Moxa EDS-205 Industrial Switch is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play Moxa EDS-205 Industrial Switch reliable and easy to use.
Moxa EDS-205 Industrial Switch Specifications :
- Ethernet Interface
- Standards
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X) and 100BaseFX
- IEEE 802.3x for flow control
- 10/100BaseT(X) Ports (RJ45 connector)
- Full/Half duplex mode
- Auto MDI/MDI-X connection
- Auto negotiation speed
- Standards
- Switch Properties
- Processing Type Store and Forward
- MAC Table Size 1 K
- Packet Buffer Size 512 kbits
- Power Parameters
- Input Voltage 24 VDC
- Input Current 0.11 A @ 24 VDC
- Operating Voltage 12 to 48 VDC
- Connection 1 removable 3-contact terminal block(s)
- Overload Current Protection 1.1 A @ 24 VDC
- Reverse Polarity Protection Supported
Selain jual Moxa EDS-205 Industrial Switch , JFX Technologies juga menerima jasa instalasi dan maintenance switch dengan harga bersaing. Kami tidak sekedar jual Moxa EDS-205 Industrial Switch , tetapi juga memberikan jaminan atas barang yang anda beli.
