JFX Technologies jual Lenel LNL-1300 Single Reader Interface Module dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Lenel LNL-1300 Single Reader Interface Module dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Access Control lainnya baik dari Lenel ataupun merk lain, klik disini untuk pilihan produk Access Control lainnya. Berikut penjelasan singkat mengenai Lenel LNL-1300 Single Reader Interface Module, atau untuk informasi datasheet bisa download disini

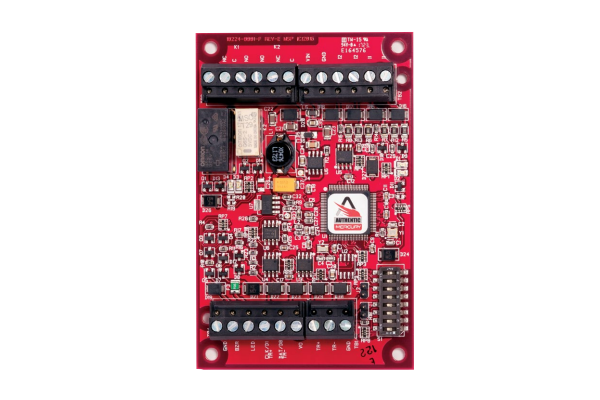

Single Reader Interface Module

Lenel LNL-1300 Single Reader Interface Module offers a Single Reader Interface (SRI) module for access control solutions. Access control card readers, keypads, or readers with keypads that use standard Wiegand Data1/Data0, Supervised or Unsupervised F2F, or Clock/Data communication are supported, as are those supporting the bidirectional RS485 Open Supervised Device Protocol (OSDP™). Lock, unlock, and facility code offline access modes are supported on all readers connected to the SRI. Each SRI supports up to 16 different card formats as well as issue codes for both magnetic and Wiegand card formats.

Lenel LNL-1300 Single Reader Interface Module provides a vital link between the Intelligent System Controller (ISC) and the card reader attached to the interface. As many as 32 SRI modules can be multidropped using RS-485 2-wire communication up to 4,000 feet (1219 m) per port away from the ISC. Each SRI module is individually addressed for increased reporting capabilities with OnGuard® access control software applications. The SRI includes two inputs that support normally open, normally closed, supervised, and non-supervised circuits. Two output relays support fail-safe or fail-secure operation.

Lenel LNL-1300 Single Reader Interface Module Features & Functionality

  • Two Form-C relay outputs (5 A door strike and 1 A aux relays)
  • Up to 16 different card formats
  • Issue code support
  • Downloadable firmware
  • Door contact open or closed, supervised or non-supervised

Selain jual Lenel LNL-1300 Single Reader Interface Module, JFX Technologies juga menerima jasa instalasi dan maintenance Access Control dengan harga bersaing. Kami tidak sekedar jual Lenel LNL-1300 Single Reader Interface Module, tetapi juga memberikan jaminan atas barang yang anda beli.
