JFX Technologies jual Lenel LNL-1100 Input Control Module dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Lenel LNL-1100 Input Control Module dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Access Control lainnya baik dari Lenel ataupun merk lain, klik disini untuk pilihan produk Access Control lainnya. Berikut penjelasan singkat mengenai Lenel LNL-1100 Input Control Module, atau untuk informasi datasheet bisa download disini

Input Control Module

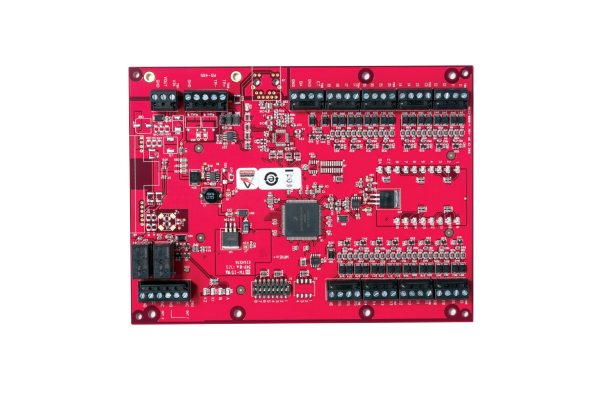

Lenel LNL-1100 Input Control Module (ICM) provides the access control system with high-speed acknowledgement of critical alarm points in monitored areas. The ICM communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. The Lenel LNL-1100 Input Control Module has 16 configurable input control points and 2 output control relays. It supports normally open, normally closed, supervised and non supervised circuits. The input circuits are scanned using an analog-to-digital converter. The digitized input status signal is software monitored and controlled, so that each input point can be programmed as a supervised or non-supervised alarm point. The output relays can also be configured for fail-safe or fail secure operation. Each really supports the “On,” “Off,” and “Pulse” Lenel OnGuard® software commands.

Lenel LNL-1100 Input Control Module Features & Functionality

  • Grade B, A, and AA line supervision
  • 12 or 24 VDC input power
  • 16 programmable supervised or non-supervised contacts
  • 2 Form-C 5 A, 28 VDC contacts for load switching
  • 2 dedicated inputs for tamper and power failure status
  • On-board termination jumpers
  • DIP switch-selectable addressing
  • Elevator control, support for 128 floors
  • Status LED for host communication and heartbeat
  • Variable resistor values for line supervision
  • Downloadable firmware
  • Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version
  • Suitable as replacement for Series 1 and Series 2 boards

Selain jual Lenel LNL-1100 Input Control Module, JFX Technologies juga menerima jasa instalasi dan maintenance Access Control dengan harga bersaing. Kami tidak sekedar jual Lenel LNL-1100 Input Control Module, tetapi juga memberikan jaminan atas barang yang anda beli.
