JFX Technologies jual InfraSensing Battery Monitoring System – PWR-BAT-CELL dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga InfraSensing Battery Monitoring System – PWR-BAT-CELL dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk EMS lainnya baik dari InfraSensing ataupun merk lain, klik disini untuk pilihan produk EMS lainnya. Berikut penjelasan singkat mengenai InfraSensing Battery Monitoring System – PWR-BAT-CELL, atau untuk informasi datasheet bisa download disini
Battery Monitoring System (BMS) for monitoring batteries & strings
BMS system designed for monitoring lead acid, lithium-ion or nickel battery blocks and strings.
InfraSensing Battery Monitoring System – PWR-BAT-CELL Key features :
- for 2V, 6V or 12V batteries with M8 terminal connector
- measures temperature, voltage & impedance of individual batteries
- measures battery string voltage and total impedance
- measures battery string charge and discharge current
- monitor for gas leaks from battery cells (HF, H2, CO, CO2) indicating possible thermal runaways
- compact plug & play sensor
- designed for indoor use
- steel enclosure for non-power sensors or non-IP sensors. custom color & logo options available
- industrial grade
- 0u rack, DIN rail, magnetic or wall mountable sensor
- plugs into the base unit
- powered by the base unit
- alerts via SNMP Traps, email or SMS
- out of the box integration via Modbus TCP, SNMP
- optional integration via MQTT for Industrial IoT applications
Batteries Monitoring Voltage, Temperature and Impedance

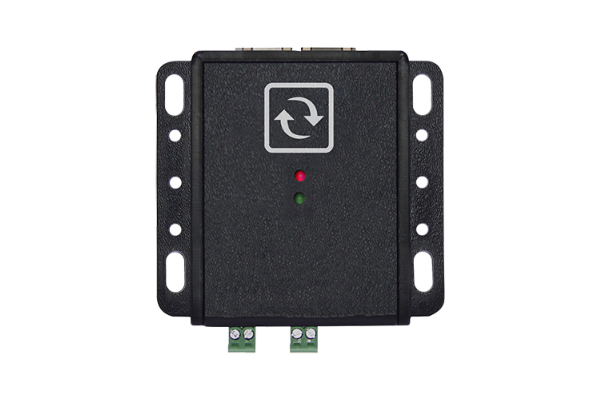

This module (PWR-BAT-CELL) monitors the state and health of your individual batteries by monitoring their temperature, voltage and impedance. The modules are daisy chained to monitor multiple batteries. The module does not drain any power from your batteries as it is powered by the battery string module (PWR-BAT-STRING). Designed for 2V,6V or 12V lead acid, li-ion or nickel batteries. Battery mountable, rack or DIN rail mount available. CE and RoHs compliant.
Selain jual InfraSensing Battery Monitoring System – PWR-BAT-CELL, JFX Technologies juga menerima jasa instalasi dan maintenance EMS dengan harga bersaing. Kami tidak sekedar jual InfraSensing Battery Monitoring System – PWR-BAT-CELL, tetapi juga memberikan jaminan atas barang yang anda beli.
