JFX Technologies jual Hikvision HF-C104 Fire Alarm Control Panel dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Hikvision HF-C104 Fire Alarm Control Panel dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Fire Alarm lainnya baik dari Hikvision ataupun merk lain, klik disini untuk pilihan produk Fire Alarm lainnya. Berikut penjelasan singkat mengenai Hikvision HF-C104 Fire Alarm Control Panel atau untuk informasi datasheet bisa download disini

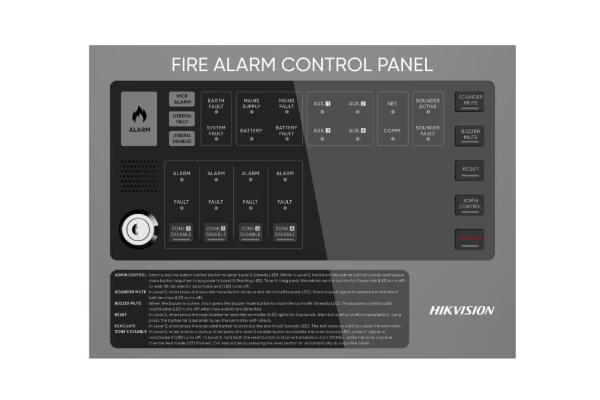

Hikvision HF-C104 Fire Alarm Control Panel
Conventional Fire Alarm Control Panel – 4 zones
- Maximum 4 zone 128 nodes loading capacity.
- Rich interface design (I/O, alarm bell, RS485, etc.)
- Ultra-slim cabinet design with hidden hinges, supporting wall mounting and built-in installation, stylish and attractive.
- Exclusive flame alarm light, paired with an 85dB high-tone buzzer, offering a refreshing audio-visual alert experience.
- Easy of use: The alarm is displayed in English, which is intuitive and clear, and the signal strength is indicated, which is easy to install.
- Supports manual alarm, automatic warning, and multi-level management modes for automatic alarms, easily handling various emergencies.
- The box comes with built-in multi-dimensional debugging functions, making the status visible and maintenance convenient.
Hikvision HF-C104 Fire Alarm Control Panel Key Feature
- Communication Distance : RVS 2*1.5 mm² flame retardant wire, max distance: 500m
- Alarm Sound Pressure : 75dB @1m
Hikvision HF-C104 Fire Alarm Control Panel Function
- Local Silence Yes
- Reset Yes
- Test Yes
Hikvision HF-C104 Fire Alarm Control Panel Interface
- Ethernet Interface 1 way
- Auxiliary Power Interface 4 way
- USB interface 1 way
- 24V out 1 way, 500mA
- Fire Bell Output 2 way, 27.5V/500mA for all
- Fire Alarm Relay Out 1 way
- Fault Relay Out 1 way
- RS-485 interface 1 way
Hikvision HF-CS1 Smoke Detector General
- Dimension (L × W × H)
- W 300 mm × H 220 mm × D 80 mm
- 4.9 kg (with 2 batteries and package)
- Working Temperature -10 ℃ ~ 55 ℃
- Working Humidity 5%～95% (non-condensing)
- Shell Material Metal
- Power
- Main power: 110 V ~ 240 V / 50 Hz ~ 60 Hz
- Backup power: 2200 mA*h / 12 V (2 pcs)
- Rated Capacity 4 zones, up to 32 conventional devices in one zone
Selain jual Hikvision HF-C104 Fire Alarm Control Panel, JFX Technologies juga menerima jasa instalasi dan maintenance Fire Alarm dengan harga bersaing. Kami tidak sekedar jual Hikvision HF-C104 Fire Alarm Control Panel, tetapi juga memberikan jaminan atas barang yang anda beli.
