JFX Technologies jual Dasan 2301 ONT dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Dasan 2301 ONT dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk GPON lainnya baik dari Dasan ataupun merk lain, klik disini untuk pilihan produk GPON lainnya. Berikut penjelasan singkat mengenai Dasan 2301 ONT, atau untuk informasi datasheet bisa download disini

Fiber Access G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON technology

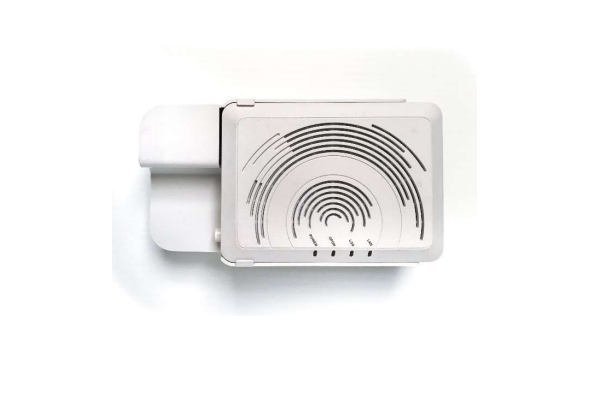

The Dasan 2301 ONT is an advanced, GPON compliant Optical Network Terminal (ONT) able to support service provider requirements for highspeed data and voice in a cost-effective design. The ONT is fully compliant with ITU-T G.984 GPON standard with integrated, Class B+ on-board optics supporting 1310nm and 1490nm wavelengths. The 2301 offers data rates of 1.0Gbps downstream and 1.0Gbps upstream able to deliver access edge services and full range of residential and business use cases required. With software management features, subscribers can enjoy hyper-connected multimedia services much easier, faster, and more reliably than ever before.

The Dasan 2301 ONT includes one SC/APC GPON interface, and one 10/100/1000Base-T port. The ONT supports wire-speed L2 bridging at line rate. An option fiber tray offers a convenient way to slack loop extra fiber and prevent subscribers from touching optical interface.

Features & Benefits

  • Supports 1.0Gbps/1.0Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • One gigabit multi-rate 10/100/1000M Ethernet interface

Service Scenario

The GPON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Unit (SFU) and Multi Dwelling Unit (MDU) locations with Optical Network Terminals (ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters and couplers. The Dasan 2301 ONT supports 1.0G capable downlinks using the GPON standard. Services include High-Speed Internet (HIS), Packet Voice, IPTV, OTT video, and cloud enabled services to multi-media devices.

Selain jual Dasan 2301 ONT, JFX Technologies juga menerima jasa instalasi dan maintenance GPON dengan harga bersaing. Kami tidak sekedar jual Dasan 2301 ONT,  tetapi juga memberikan jaminan atas barang yang anda beli.
