JFX Technologies jual Dahua ASC2208C-S Access Controller dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Dahua ASC2208C-S Access Controller dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Access Control lainnya baik dari Dahua ataupun merk lain, klik disini untuk pilihan produk Access Control lainnya. Berikut penjelasan singkat mengenai Dahua ASC2208C-S Access Controller atau untuk informasi datasheet bisa download disini

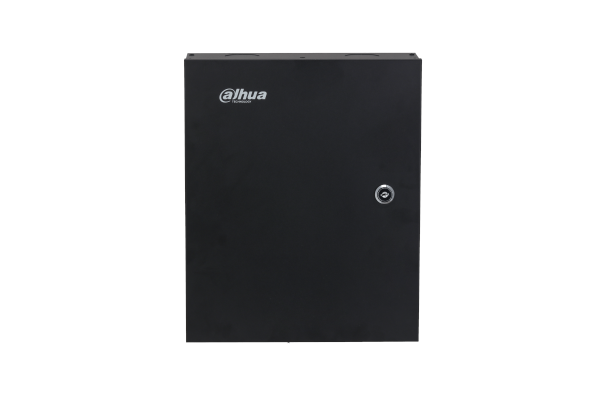

Dahua ASC2208C-S Access Controller

Dahua ASC2208C-S Access Controller :

  • TCP/IP communication.
  • Two communication protocols: RS-485 and Wiegand.
  • Supports storing 100,000 user and 500,000 card-swiping records.
  • Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock.
  • Supports reader tamper alarm, intrusion alarm, unlocking timeout alarm, duress alarm, invalid card exceeding threshold alarm, and incorrect password alarm.
  • Supports built-in RTC, manual time fixing, and automatic time fixing.
  • Data can be saved permanently in case of power failure; supports online upgrade.
  • Power supply through storage battery.
  • Supports watchdog mechanism to ensure the operation stability.

System

  • Main Processor Embedded processor
  • Internet Protocol IPv4; TCP; UDP
  • OSDP Protocol Yes
  • SDK Yes

Basic

  • Product Appearance Type C Iron Container
  • Buzzer Yes
  • Casing Material SECC steel board

Function

  • Unlock Mode Card swiping; Remote; Password; Fingerprint
  • Period List 128 periods
  • Holiday Period 128 periods
  • Network Update Yes
  • First-Card Unlock Yes
  • Remote Verification Yes
  • Blocklist/Allowlist Yes
  • Peripheral Card Reader Supports 8-Channel RS-485 card reader
    8-Channel Wiegand card reader
  • Multi-door Interlock Yes
  • Group Combination Card swiping; password; fingerprint
  • Real-Time Surveillance Yes
  • Multiple Authentication Yes

User

  • User (Card) Type General user; VIP user; patrol user; guest user; blocklist user; other user

Capacity

  • User Capacity 100,000
  • Fingerprint Capacity 3000
  • Card Capacity 100,000
  • Record Capacity 500,000

Port

  • RS-485 Port 9 × RS-485 ports
  • Wiegand 8 × Wiegand ports
  • Network 1 × 10/100 Mbps Ethernet port
  • Alarm Input 8 (digital quantity)
  • Alarm Output 8 (relay)
  • Alarm Linkage Yes
  • Exit Button 8
  • Door Status Detection 8
  • Lock Control 8 channels, NO by default

Alarm

  • Anti-Passback Yes
  • Tamper Yes
  • Duress Yes
  • Door Unlock Timeout Yes
  • Intrusion Yes
  • Illegal Card Exceeding Threshold Yes
  • Duress Fingerprint Yes

Selain jual Dahua ASC2208C-S Access Controller, JFX Technologies juga menerima jasa instalasi dan maintenance Access Control dengan harga bersaing. Kami tidak sekedar jual Dahua ASC2208C-S Access Controller, tetapi juga memberikan jaminan atas barang yang anda beli.
