JFX Technologies jual ZKTeco ZKX5030A X-ray Inspection System dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga ZKTeco ZKX5030A X-ray Inspection System dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Security Inspection lainnya baik dari ZKTeco ataupun merk lain, klik disini untuk pilihan produk Security Inspection lainnya. Berikut penjelasan singkat mengenai ZKTeco ZKX5030A X-ray Inspection System, atau untuk informasi datasheet bisa download disini
Single Energy X-ray Inspection System

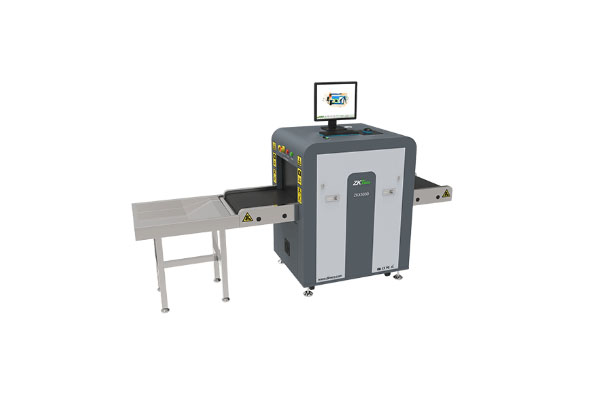

ZKTeco ZKX5030A X-ray Inspection System increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry on baggage, small cargo parcels.
ZKTeco ZKX5030A X-ray Inspection System uses reliable high quality single energy X-ray generator. With the superb image algorithm, ZKTeco ZKX5030A X-ray Inspection System could offer clear scanning image, which allows operators to identify potential threat items visually. With ergonomic modern design,ZKTeco ZKX5030A X-ray Inspection System could help operators to identify suspicious items fast and accurately.
ZKTeco ZKX5030A X-ray Inspection System Highlights :
- Offer higher Wire Resolution with HAMAMATSU® X-ray detector Pseudo-color scanning image
- Widely usable for small parcels
- Excellent, ergonomic industrial design
ZKTeco ZKX5030A X-ray Inspection System Standard :
- Energy Saving Mode
ZKTeco ZKX5030A X-ray Inspection System Optional :
- Bidirection scan
- Electrical weighing system
- Fingerprint Console Board
- Console Desk
ZKTeco ZKX5030A X-ray Inspection System Specifications :
- Tunnel Size W507mm × H305mm
- Speed 0.20 m/s
- Height of Transmission Belt 1000 mm
- Maximum Load ≤120 Kg (Adequate distribution)
- Wire Resolution 34 AWG (0.16mm metal wire)
- Space Definition Horizontal Φ1.0mm \ Vertical Φ2.0mm
- Penetrate Definition 32 AWG
- Penetration 8mm Steel board
- Monitor 17 inch LED
- System Function High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintanance, Training, 64 times continuous zoom in
- Film Safety ASA/ISO1600 standard of film safety
Selain jual ZKTeco ZKX5030A X-ray Inspection System, JFX Technologies juga menerima jasa instalasi dan maintenance Security Inspection dengan harga bersaing. Kami tidak sekedar jual ZKTeco ZKX5030A X-ray Inspection System, tetapi juga memberikan jaminan atas barang yang anda beli.
