JFX Technologies jual Ubiquiti U7 In-Wall dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Ubiquiti U7 In-Wall dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk access point lainnya baik dari Ubiquiti ataupun merk lain, klik disini untuk pilihan produk access point lainnya. Berikut penjelasan singkat mengenai Ubiquiti U7 In-Wall atau untuk informasi datasheet bisa download disini

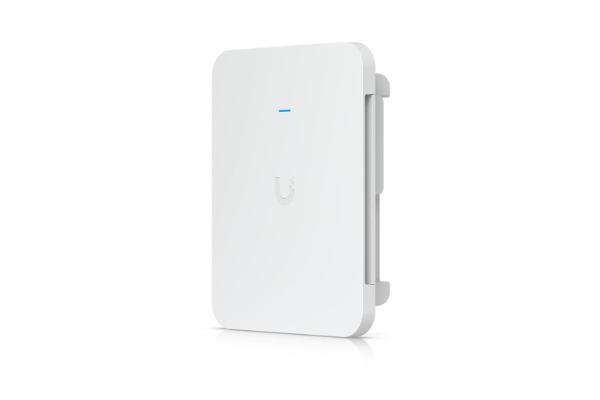

Ubiquiti U7 In-Wall

As businesses take a ‘wireless-first’ approach to network design, the adoption of Wi-Fi 7 is rapidly picking up pace. All the key manufacturers now offer a wide range of Wi-Fi 7 access points (APs) and Ubiquiti Networks stakes its claim with a family of no less than eight APs. The Ubiquiti U7 In-Wall is well-built with a solid polycarbonate cover and metal chassis. The box includes metal mounting plates and a complete toolkit with all the components needed for wall mounting and all types of ceiling – even the mounting template card has a built-in spirit level.

Ubiquiti U7 In-Wall

  • Dimensions 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2″)
  • WiFi Standard WiFi 7
  • Spatial Streams 4
  • Coverage Area 115 m² (1,250 ft²)
  • Max. Client Count 200+
  • Uplink 2.5 GbE
  • Mounting Wall (Metal Wall Mount Included)
  • Power Method PoE PoE+ (Required for PoE output)

Performance

  • MIMO
    • 5 GHz 2 x 2 (DL/UL MU-MIMO)
    • 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate
    • 5 GHz 4.3 Gbps (BW240)
    • 2.4 GHz 688 Mbps (BW40)
  • Antenna Gain
    • 5 GHz 8 dBi
    • 2.4 GHz 4 dBi
  • Max. TX Power
    • 5 GHz 24 dBm
    • 2.4 GHz 23 dBm
  • Max. BSSIDs 8 per Radio
  • Supported Data Rates
    • 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
    • 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Hardware

  • Max. Power Consumption 13W (Excluding PoE output)
  • Supported Voltage Range 42.5—57V DC
  • Networking Interface (3) 2.5 GbE RJ45 ports
  • Weight 400 g (14.1 oz)
  • Management Ethernet
  • Built-In Switch (1) PoE+ input and (1) PoE output
  • Enclosure Material Polycarbonate, aluminum alloy
  • Mount Material Aluminum alloy
  • LEDs System White/Blue
  • Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
  • Certifications CE, FCC, IC
  • Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity 5 to 95% noncondensing

Selain Jual Ubiquiti U7 In-Wall, JFX Technologies juga menerima jasa instalasi dan maintenance access point dengan harga bersaing. Kami tidak sekedar jual Ubiquiti U7 In-Wall, tetapi juga memberikan jaminan atas barang yang anda beli.
