JFX Technologies jual Rosslare AC-825IP Access Door Controller dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Rosslare AC-825IP Access Door Controller dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Access Control lainnya baik dari Rosslare ataupun merk lain, klik disini untuk pilihan produk Access Control lainnya. Berikut penjelasan singkat mengenai Rosslare AC-825IP Access Door Controller, atau untuk informasi datasheet bisa download disini

Advanced Scalable Networked Access Platform

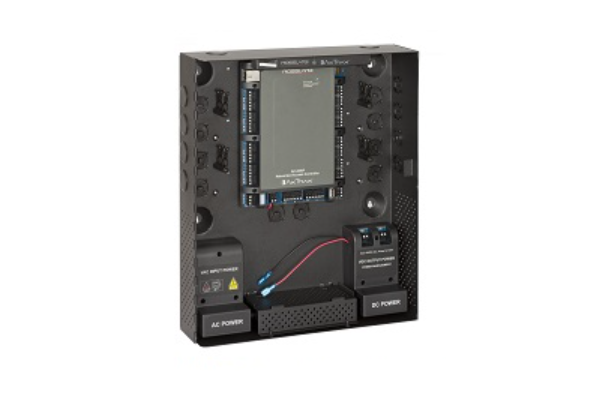

The Rosslare AC-825IP Access Door Controller is a 6-door (4 Wiegand format & 2 OSDP readers) networked access controller suitable for a medium-scale to high-scale security system. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users. Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs.

GENERAL DESCRIPTION

The Rosslare AC-825IP Access Door Controller supports up to 4 doors (In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board. The Rosslare AC-825IP Access Door Controller includes an encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity. In addition, the AC-825IP and its expansions can be placed in a lockable metal enclosure, the ME-1515, which includes a control board, power switcher, built-in power management board/charger, sounder, and a revolutionary enclosure illumination bar that lights up when the enclosure is opened.

MAIN FEATURES

  • Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
  • Onboard TCP/IP networking with data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission speed and reliability
  • Supports up to 6 doors (4 Wiegand format & 2 OSDP readers), each with 2 inputs and 1 output

Selain jual Rosslare AC-825IP Access Door Controller, JFX Technologies juga menerima jasa instalasi dan maintenance Access Control dengan harga bersaing. Kami tidak sekedar jual Rosslare AC-825IP Access Door Controller, tetapi juga memberikan jaminan atas barang yang anda beli.
