JFX Technologies jual Fluke Networks TS 19 Test dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Fluke Networks TS 19 Test dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk Cabling lainnya baik dari Fluke Networks ataupun merk lain, klik disini untuk pilihan produk Cabling lainnya. Berikut penjelasan singkat mengenai Fluke Networks TS 19 Test, atau untuk informasi datasheet bisa download disini

TS19 telephone test equipment features DataSafe™, Tone or Pulse operation, Talk/Monitor capabilities and last number redial

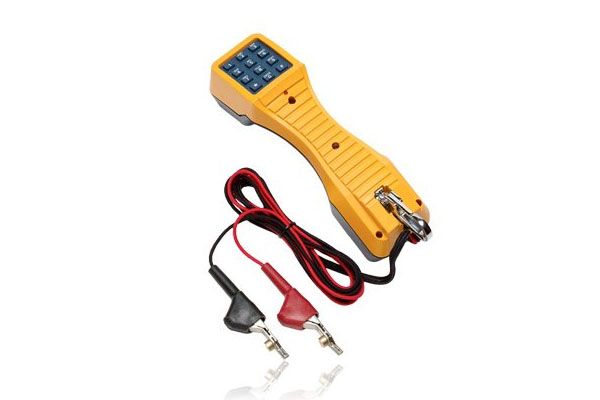

Fluke Networks TS 19 Test combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.

Fluke Networks TS 19 Test telephone test equipment features DataSafe™, Tone or Pulse operation, Talk/Monitor capabilities and last number redial.

  • High impedance DataSafeTM operation in monitor mode
  • Tone (DTMF) and pulse operation
  • Last number redial
  • Polarity indication in talk mode

Electrical

  • Loop Limit : 2.4 kΩmaximum at 48 VDC (nominal 15 mA minimum loop current)
  • DC Resistance (Talk Mode) : 150 Ωtypical at 80 mA current
  • AC Impedance (Monitor Mode): Low impedance (Ring position) 600 Ωat 1 KHz typical High impedance (HI Z position) 100 kΩminimum at 1 KHz
  • Rotary Dial Output : 10 pps .5 pps
  • Pulsing Rate 60 % ± 2 %
  • Percent Break 800 ms typical
  • Interdigit Interval Leakage During Break : > 50 kΩ
  • DTMF Output : ±1 % maximum
  • Tone Frequency Error Level per Tone Pair : dBm maximum, – dBm minimum
  • High versus Low Tone Difference : 4 dB maximum

Selain jual Fluke Networks TS 19 Test, JFX Technologies juga menerima jasa instalasi dan maintenance Cabling dengan harga bersaing. Kami tidak sekedar jual Fluke Networks TS 19 Test, tetapi juga memberikan jaminan atas barang yang anda beli.
