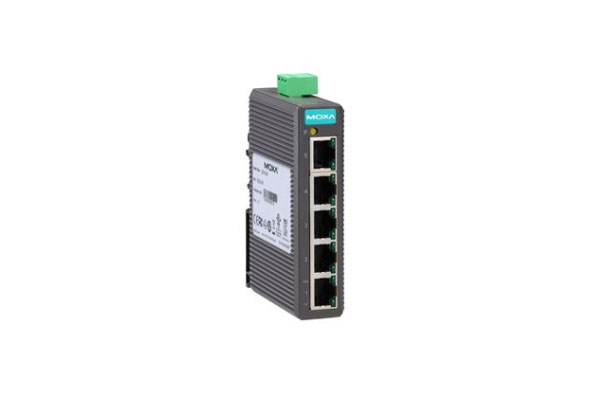

JFX Technologies jual Moxa EDS-205 Industrial Switch dengan harga terbaik di Jakarta, Indonesia. Dapatkan harga Moxa EDS-205 Industrial Switch dengan menghubungi sales@jfxtechnologies.com. Kami juga jual produk switch lainnya baik dari Moxa ataupun merk lain, klik disini untuk pilihan produk switch lainnya. Berikut penjelasan singkat mengenai Moxa EDS-205 Industrial Switch , atau untuk informasi datasheet bisa download disini

5-port entry-level unmanaged Ethernet switches

Moxa EDS-205 Industrial Switch Features and Benefits :

  • 10/100BaseT(X) (RJ45 connector)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-rail mounting ability
  • -10 to 60°C operating temperature range

The Moxa EDS-205 Industrial Switch supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The Moxa EDS-205 Industrial Switch is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play Moxa EDS-205 Industrial Switch reliable and easy to use.

Moxa EDS-205 Industrial Switch Specifications :

  • Ethernet Interface
    • Standards
      • IEEE 802.3 for 10BaseT
      • IEEE 802.3u for 100BaseT(X) and 100BaseFX
      • IEEE 802.3x for flow control
    • 10/100BaseT(X) Ports (RJ45 connector)
      • Full/Half duplex mode
      • Auto MDI/MDI-X connection
      • Auto negotiation speed
  • Switch Properties
    • Processing Type Store and Forward
    • MAC Table Size 1 K
    • Packet Buffer Size 512 kbits
  • Power Parameters
    • Input Voltage 24 VDC
    • Input Current 0.11 A @ 24 VDC
    • Operating Voltage 12 to 48 VDC
    • Connection 1 removable 3-contact terminal block(s)
    • Overload Current Protection 1.1 A @ 24 VDC
    • Reverse Polarity Protection Supported

Selain jual Moxa EDS-205 Industrial Switch , JFX Technologies juga menerima jasa instalasi dan maintenance switch dengan harga bersaing. Kami tidak sekedar jual Moxa EDS-205 Industrial Switch , tetapi juga memberikan jaminan atas barang yang anda beli.
